Strategy Design Pattern | Notes

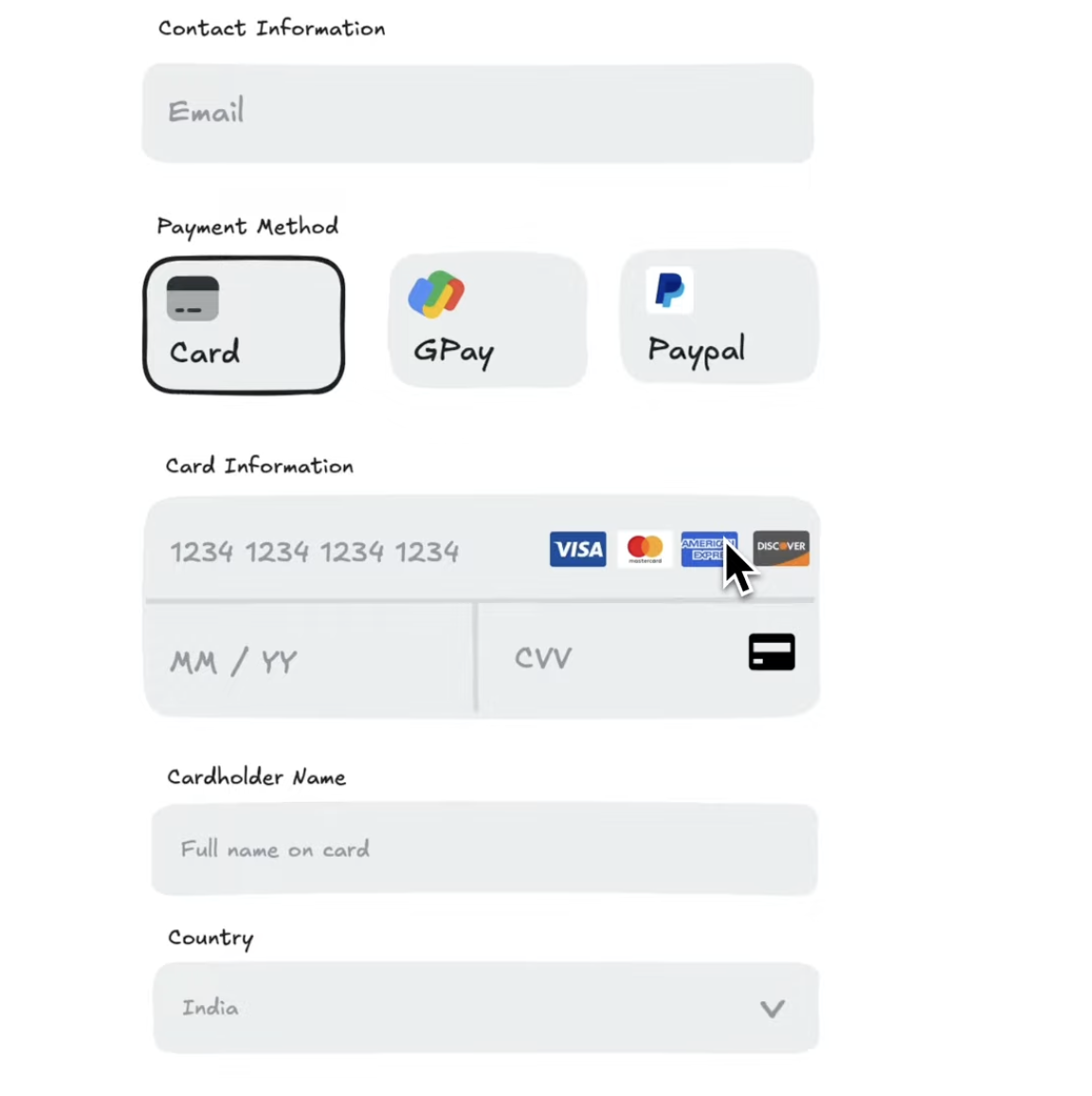

So many a times what happens is that we go on to a platform and then we are trying to do a payment. Then we get a multiple options like okay there is a Google Pay, credit card, debit card, Paypal option, right? The page looks something like this.

So, here what the Strategy Design Pattern says that we will only have one function which is pay() and internally we will have the options to choose between the different payment options. It is a behavioural design pattern that allows you to choose different algorithms or behaviours at runtime.

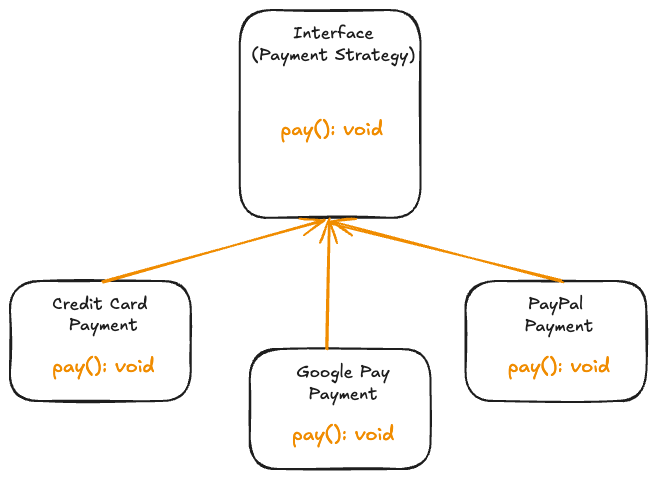

This is how the interface would look like:

The thing here is if we don't use the Strategy Pattern, we will have to create all the functions before hand with concrete algorithms. This will cause a problem called Class Explosion as we will have created many classes here.

This is a clean code example for it

Payment Strategy Class

java.terminal

public interface PaymentStrategy {
	void pay(double amount);
}

➜~java

UTF-83 lines● ready

Credit Card Payment

java.terminal

public interface CreditCardPayment {
	private String name;
	private String cardNumber;
	private String cvv;
	private String expiryDate;

	public CreditCardPayment(String name, String cardNumber, String cvv, String expiryDate){
		this.name = name;
		this.cardNumber = cardNumber;
		this.cvv = cvv;
		this.expiryDate = expiryDate;
	}

	@Override
	public void pay(double amount){
		System.out.println("Processing $" + amount + " payment with Credit Card");
	}
}

➜~java

UTF-818 lines● ready

GooglePay Payment

java.terminal

public interface GooglePayPayment {
	private String pin;

	public GooglePayPayment(String pin){
		this.pin = pin;
	}

	@Override
	public void pay(double amount){
		System.out.println("Processing $" + amount + " payment with Google Pay");
	}
}

➜~java

UTF-812 lines● ready

PayPal Payment

java.terminal

public interface PayPalPayment {
	private String pin;

	public PayPalPayment(String pin){
		this.pin = pin;
	}

	@Override
	public void pay(double amount){
		System.out.println("Processing $" + amount + " payment with PayPal");
	}
}

➜~java

UTF-812 lines● ready

PaymentProcessor

java.terminal

%% This will have the context where the different strategies will be injected based on the input %%
public interface PaymentProcessor {
	private PaymentStrategy strategy;

	public PaymentProcessor(PaymentStrategy strategy){
		this.strategy = strategy;
	}

	public void setStrategy(PaymentStrategy strategy){
		this.strategy = strategy;
	}

	public void processPayment(double amount){
		strategy.pay(amount);
	}
}

➜~java

UTF-816 lines● ready

Main Application Code

java.terminal

public class Main {
	public static void main(String[] args){
		Scanner sc = new Scanner(System.in);

		double amount = 100;

		System.out.println("Select Payment Method");
		System.out.println("1. Credit Card");
		System.out.println("2. Google Pay");
		System.out.println("3. PayPal");
		int choice = sc.nextInt();
		sc.nextLine();

		PaymentStrategy strategy = null;

		switch(choice){
			case 1:
				System.out.print("Enter your name: ");
				String name = sc.nextLine();
				System.out.print("Enter your card number: ");
				String card = sc.nextLine();
				System.out.print("Enter your CVV: ");
				String cvv = sc.nextLine();
				System.out.print("Enter your name: ");
				strategy = new CreditCardPayment();
				break;

			case 2:
				System.out.print("Enter your pin: ");
				String pin = sc.nextLine();
				strategy = new GooglePayPayment();
				break;

			case 3:
				System.out.print("Enter your pin: ");
				String pin = sc.nextLine();
				strategy = new PayPalPayment();
				break;

		}

		PaymentProcessor processor = new PaymentProcessor(
		strategy);
		processor.processPayment(amount);

		sc.close();
	}
}

➜~java

UTF-848 lines● ready
